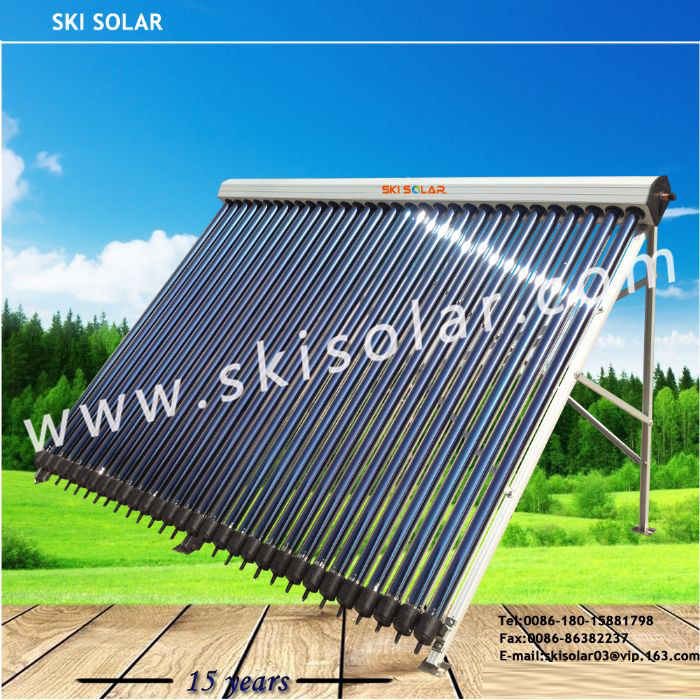

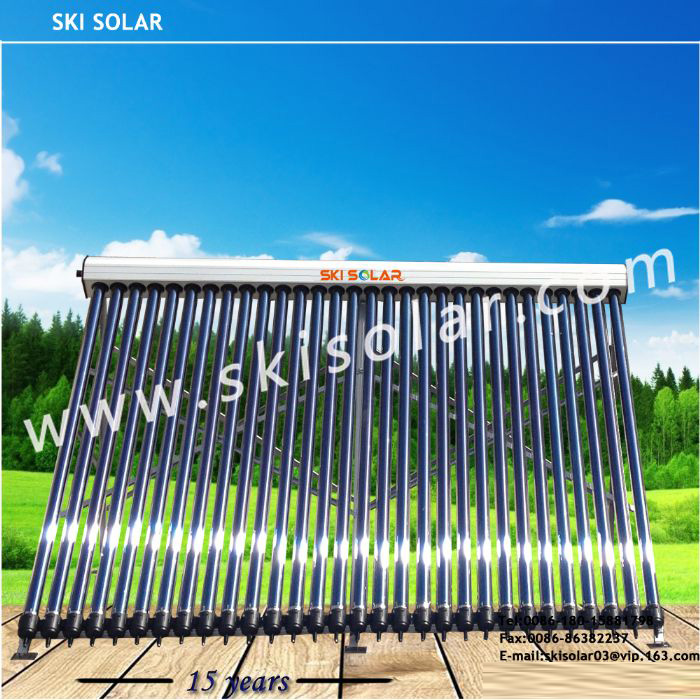

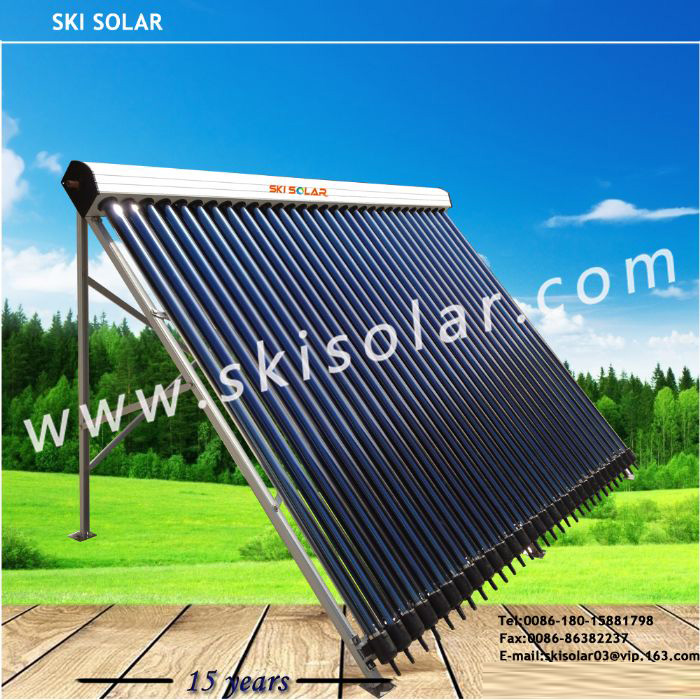

Heat Pipe Solar Collector (SKI-CA)

Contact Us:

Tel: 0086-519-86398768 / 86393722
Fax: 0086-519-86382237
E-mail: skisolar03@vip.163.com
Skype: sara.zhu1
whatsapp: 0086 18015881798

点击这里给我发消息 点击这里给我发消息

Special designed for the separate pressurized solar heating systems. It's easy to combine with existing water heating systems. This solar collector is of excellent figure, reliable performance, low maintenance, convenient replacement. One or several glass tubes broken will not affect the operation of the whole system.

Working Principle:
Sun's ray will be collected by absorbers, then radiation can be transformed into heat energy by selective absorbing film. Heat pipes conduct the heat from the tube up to the header pipe. The circulation pump makes water circulate every now and then. And Each time the water circulates through the header pipe, the temperatures is raised by 5-10 degree.

Specifications:
Heat pipe material: copper
Vacuum tube model:φ58mm×1800mm
Fins around heat pipe: Aluminum
Inner manifold: copper header pipe
Outer manifold: stainless steel SUS304-2B, thickness: 0.31mm or aluminum alloy, thickness: 2mm
Insulation: rock wool, thickness: 30mm to 60mm.
Frame: aluminum alloy, thickness: 2mm







英文版CA 第7张.png
