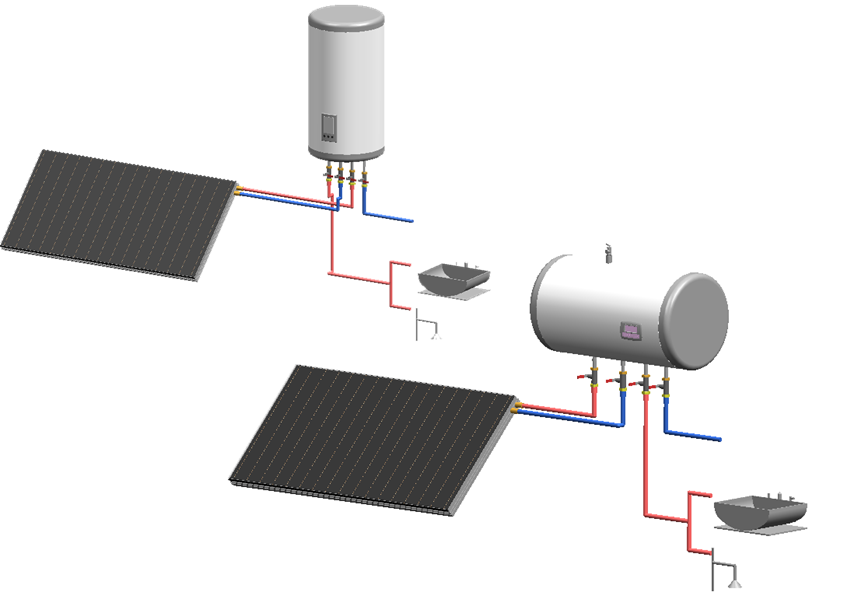

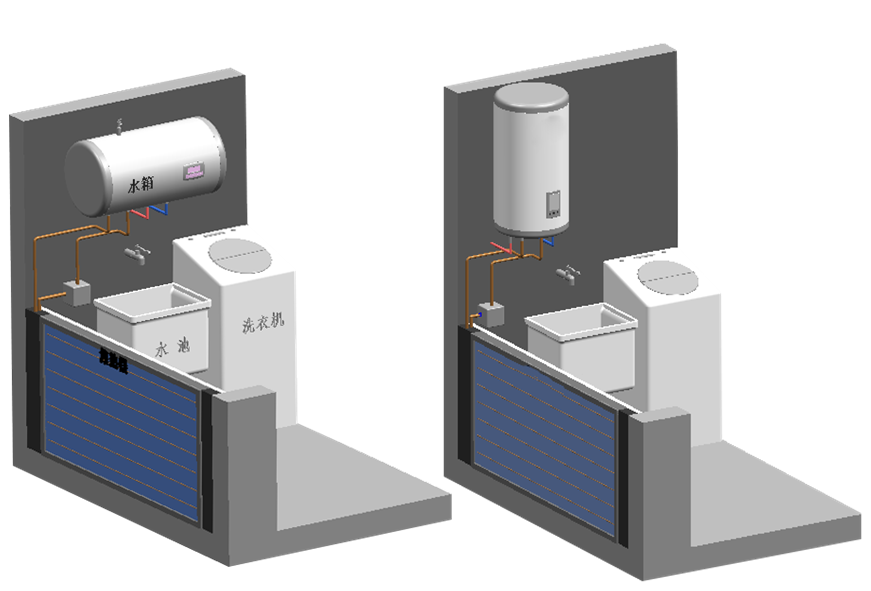

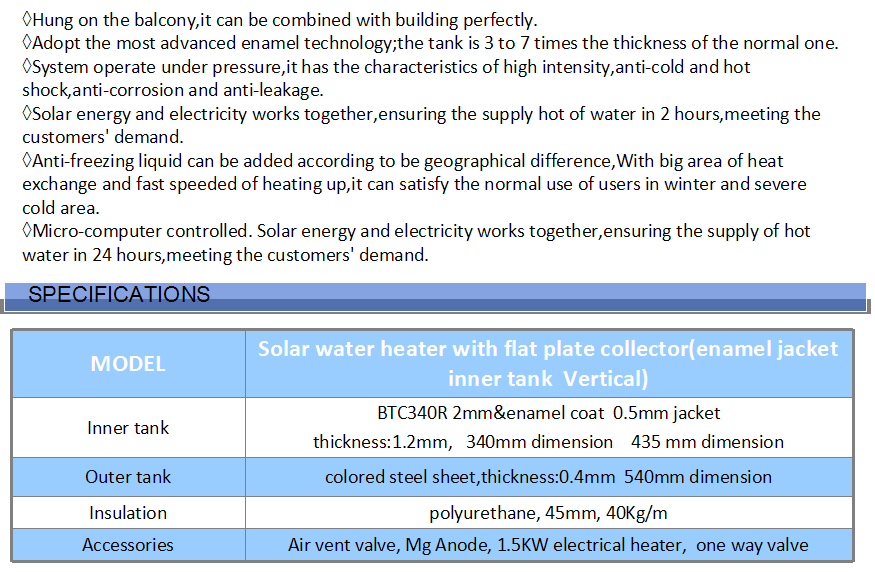

◇ Hung on the balcony, it can be combined with building perfectly.

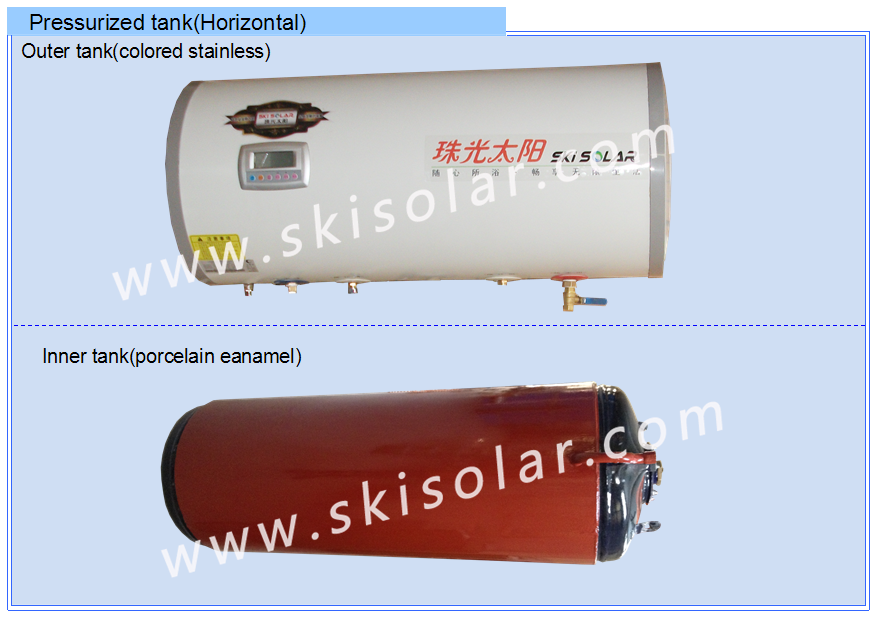

◇ Adopt the most advanced enamel technology. The tank is 3 to 7 times the thickness of the normal one.
◇ System operate under pressure, it has the characteristics of high intensity, anti-cold and hot shock, anti-corrosion and anti-leakage.
◇ Micro-computer controlled. Solar energy and electricity works together, ensure the supply of hot water in 24 hours, meeting customer’s demand.
◇ Anti-freezing liquid can be added according to the geographical difference. With big area of heat exchange and fast speed of heating up, it can satisfy the normal use of users in winter and severe cold area.
Product technical data:
|
Model
|
Diameter of inner tank
|
Inlet/outlet water pipe size
|
Power of electric heater
|
Rated pressure
|
Overall dimension
|
|
80L
|
φ360
|
G1/2
|
1.5KW / 2KW
|
0.7MPa
|
φ470×980
|
|
100L
|
φ360
|
G1/2
|
1.5KW / 2KW
|
0.7MPa
|
φ470×1180
|
|
120L
|
φ360
|
G1/2
|
1.5KW / 2KW
|
0.7MPa
|
φ470×1300
|
|
